Sancassiano Robot Automatic Mixer System

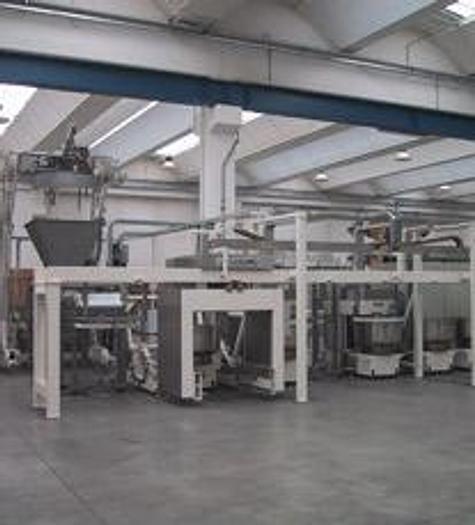

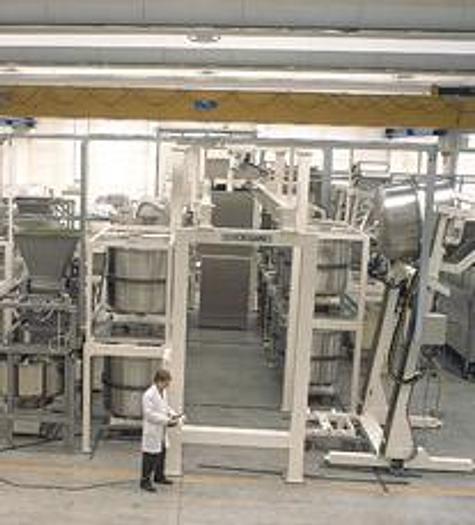

Sancassiano Linear Robot system can be considered as the evolution of a traditional Carousel system. A variable number of bowls is handled and moved by a strong robot shuttle between the different stations: dosing, kneading, proofing and discharging. The result is high productivity and maximum flexibility in reduced spaces without human operations. Here the main advantages of this system:
High flexibility in mixing, resting and in production cycles (direct, with resting phases, autolysis, second mixing phases… ).
Easy repeatability in the mixing phases and constant final output.
Possibility of future expansions (adding mixers and bowls), thanks to the modular structure.
Possibility to feed more than one line in parallel (even with different types of dough).
Easier sanitation of machines and mixing area: the Sancassiano robot allows a deep, easy cleaning and control of “critical areas”. The robot has a design totally free from the ground.
Easy to use and set avoiding human mistakes in production.
Reduction of labour needs.
Automatic Robot Systems: Hourly production from 500 up to 10.000 Kg/h
Choose your mixing technology to know the final application:
Robot equipped with:

Planetary Mixer
HYDRA
Kryos
Spiral Mixer
Double Spiral Mixer
Global Force
Twin Arm Mixer
French Fork Mixer


Optional Features

In order to customize the system and make it capable of meeting customer’s needs and requirements, the customer can chose between a wide range of specific optional:
Partial or total stainless steel execution.
Temperature and energy detector system.
Cooling (or warming) of the dough by means of gas or liquid recirculation (glycol…)
Inverter to continuously change and set tools and bowl speed.
Customized control system (PLC or PC) to manage production tracking and communication with other upstream and downstream control systems.
Weighing and integration of scrap dough (see the pictures).
Network assistance and servicing (modem…)
